Description

Part #          Pivot Sizes (mm)     Drill Sizes (mm)
B 2.00          0.50-1.00                               5
B 3.00          0.90-2.00                               6
B 4.00          1.90-3.00                               7
B 5.00          2.90-4.00                               8
B 6.00          3.90-5.00                             10
B 7.00          4.90-6.00                             11
B 8.00          5.90-7.00                             12
B 9.00          6.90-9.00                             14
T1   Thrust bearing for Urgos tubular chime roll

NOTE: The pricing includes a bushing or sleeve to fit the bearing to accommodate all in between sized pivots. The bushing or sleeve may need broached to fit the pivot.

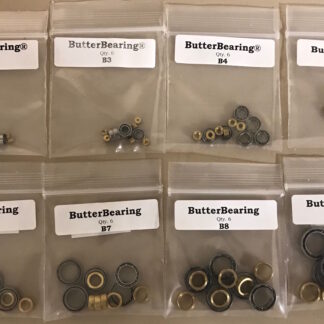

Qty:  6 per pack

KIT Ordering Instructions:
1)  The kit consists of the bushing already broached to correct size and installed in the bearing
2)  Click HERE to find kit # (starts with “BK”)
3)  Choose “KIT” in drop down options
4)  At checkout, please note the Kit # in “Special Notes” area
5)  The price defaults to $24 but you will be charged according to price on the reference document

DRILL SIZE Ordering Instructions:
1)  Choose “DRILL (mm)” in drop down options
2)  At checkout, please note the drill size (in mm) in “Special Notes” area
3)  Available drill sizes (in mm):  5, 6, 7, 8, 10, 11, 12, 14
