The following three weight Hermle units retrofit for Jauch chain wind units. The retrofits will include Hermle movement, hands, seat board screws, shims where needed, pendulum hook, and chime weight filler where needed.

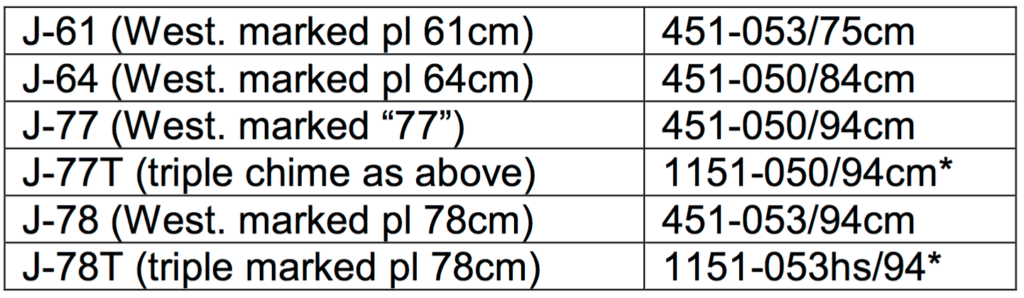

For Jauch movements measuring approximately 5” x 5”:

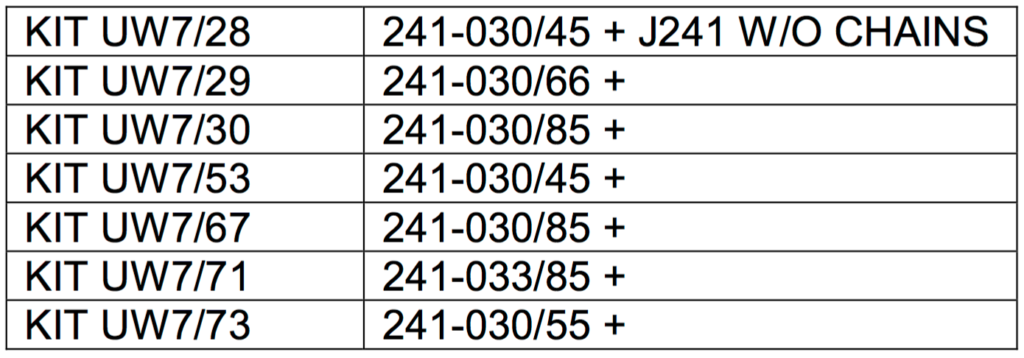

For Urgos movements UW 7 series:
For Jauch movements measuring approximately 5” x 5”:
NOTES
• The dial must be attached to the clock case for all conversions
• The moon dial flipper for the J-77 is available
• * A new chime block is supplied for the triple chime models
• ** The pendulum needs lengthened 2″
