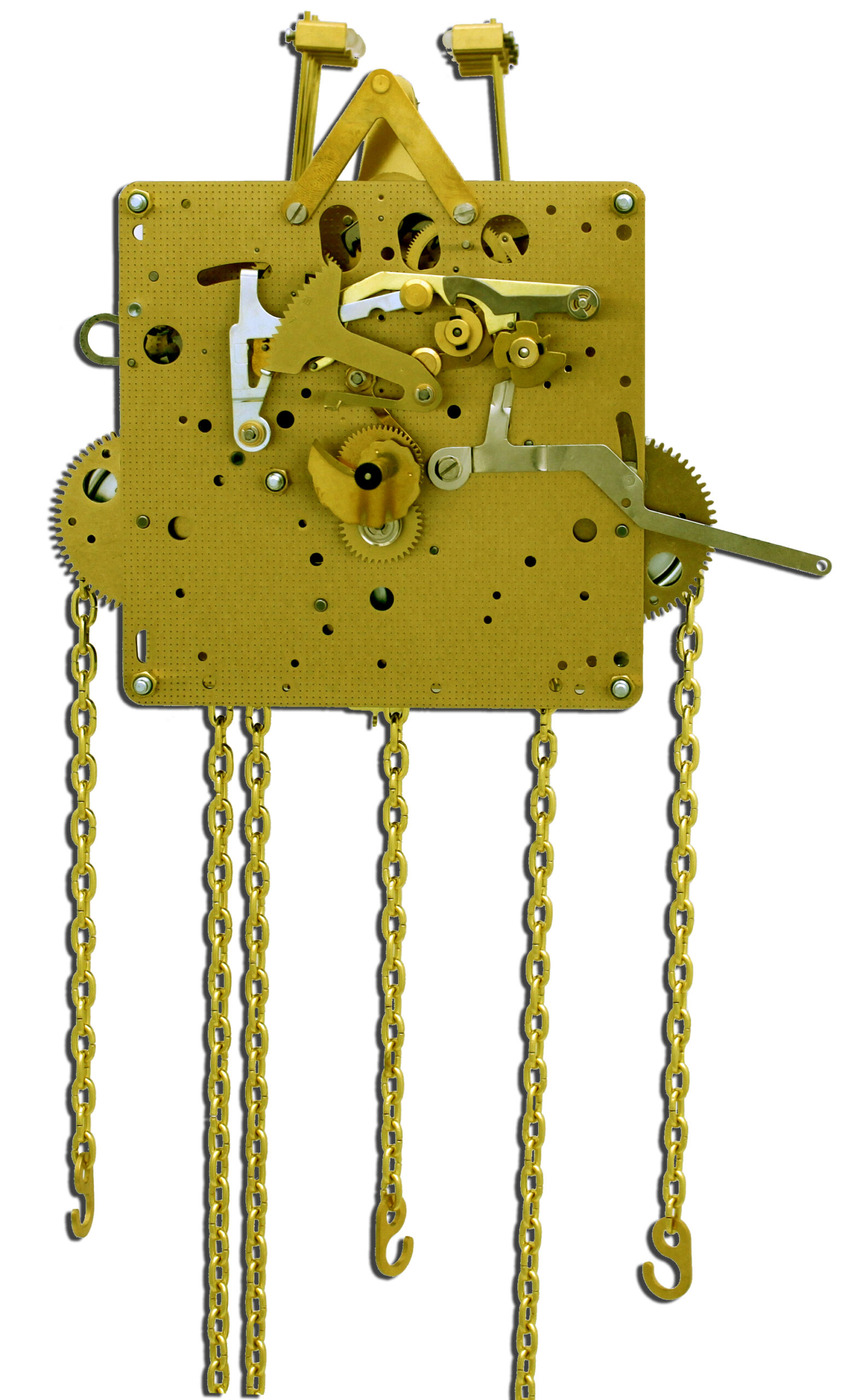

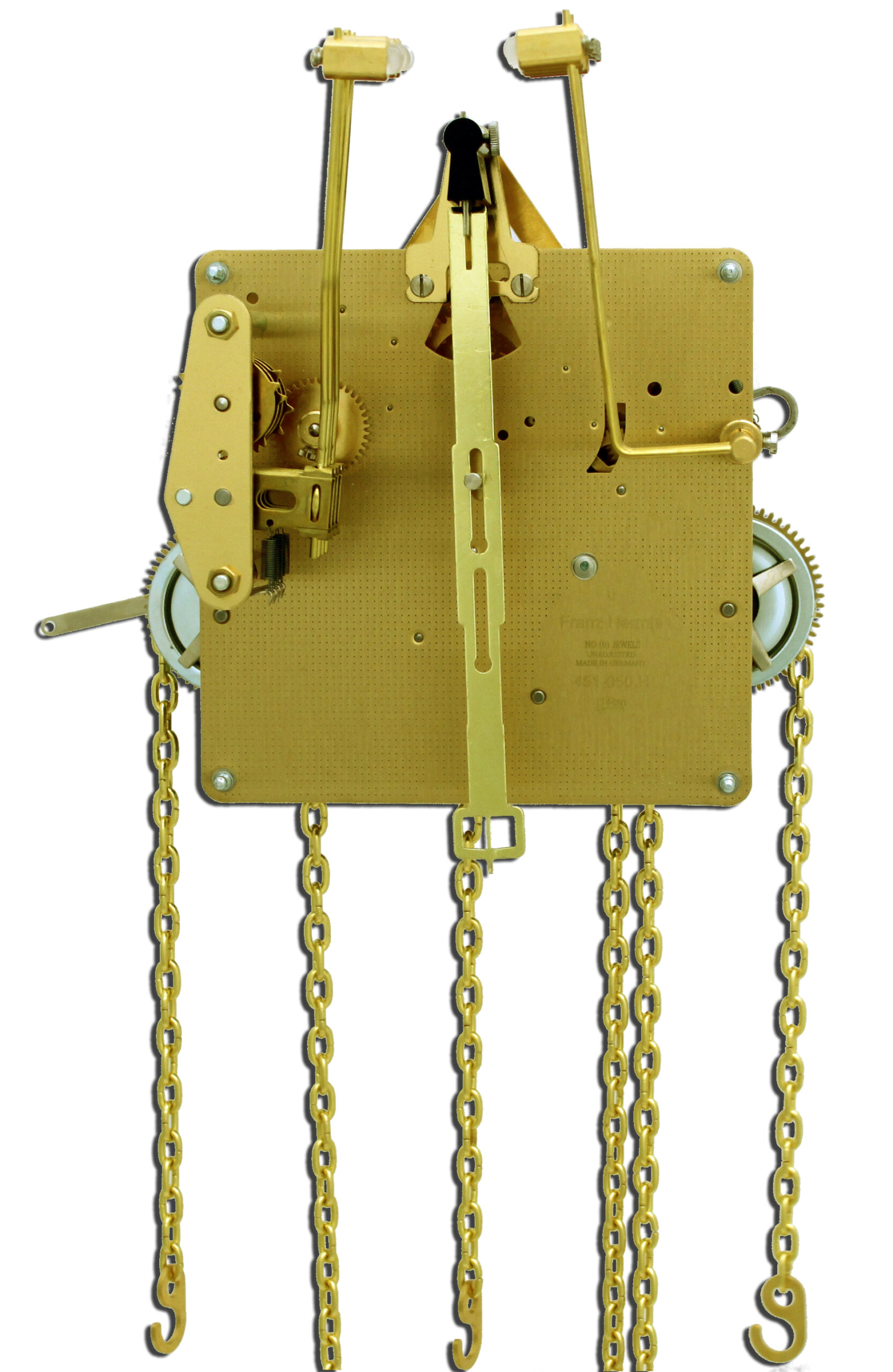

Description

Escapement: Rear pendulum
Train: 3 chain wind
Hammers: Rear 4 + 4 Westminster
Hand shaft: 53mm
Plate size: 120mm x 120mm

H= high suspension post 35mm from back plate

DB= dead or manual beat set Suspension post 35mm from rear plate to screw hole

DBL= dead beat low suspension post [even with the top of the movement] Suspension post 18mm from rear plate to screw hole

Short post Suspension post 21mm from rear plate to screw hole
